ENERGYPIER POWER PLANT

The EnergyPier power plant to produce green electricity and generate positive externalities

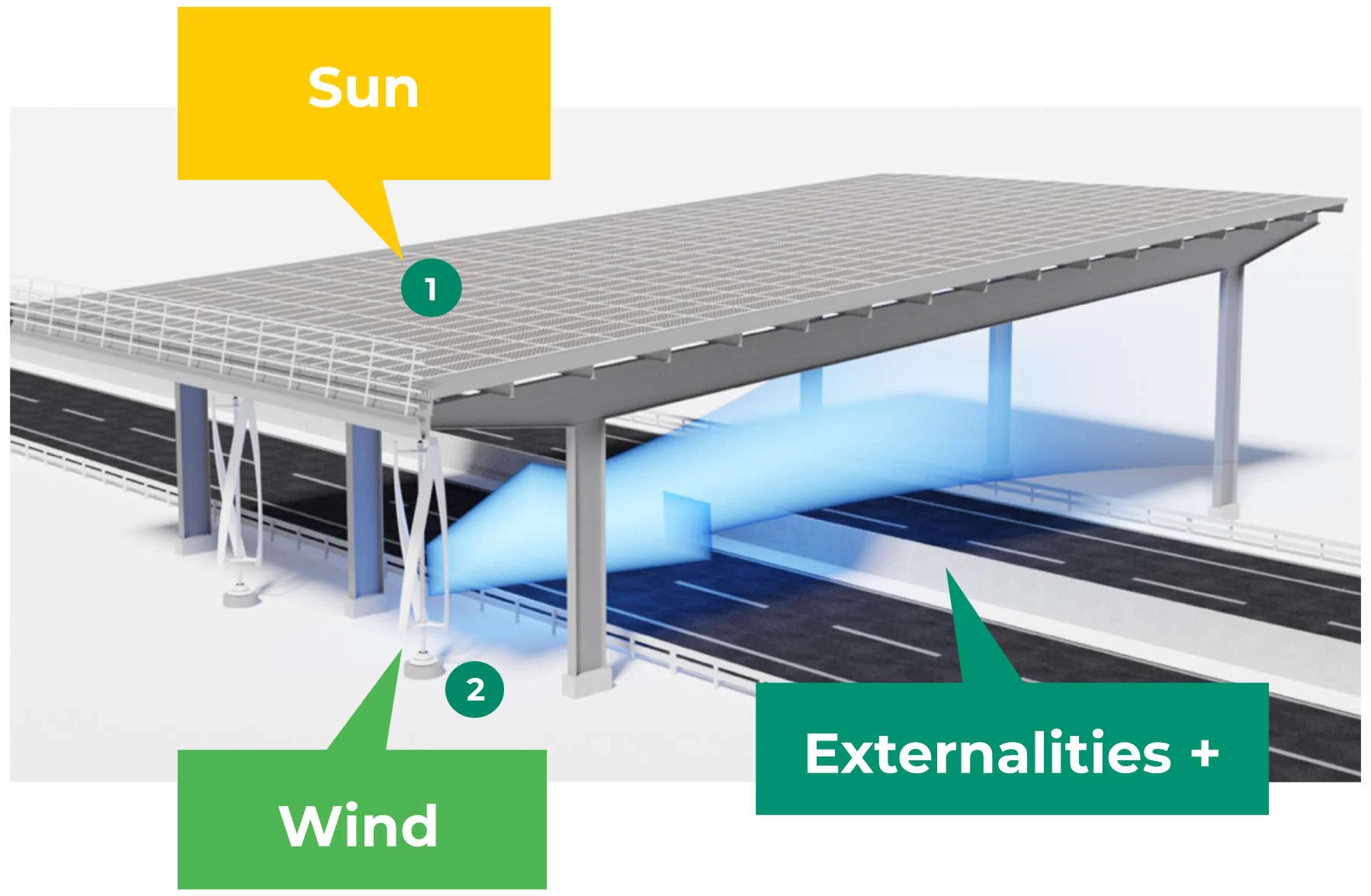

EnergyPier combined power plants produce clean (green) electricity and generate positive externalities.

  • Sun – Thousands of m2 of solar cell modules produce large quantities of clean electricity.
  • Wind – The airflow accelerated by the plant’s supporting structure is converted into green electricity by EnergyPier AnemoGenTM vertical generators

Externalities+ - EnergyPier’s structure provides additional advantages to both motorway operators and users:

  • Noise reduction
  • Reduced winter maintenance
  • Protection of the road against excessive heating
positive externalities
positive externalities

Important additional benefits for motorway users and operators: positive externalities

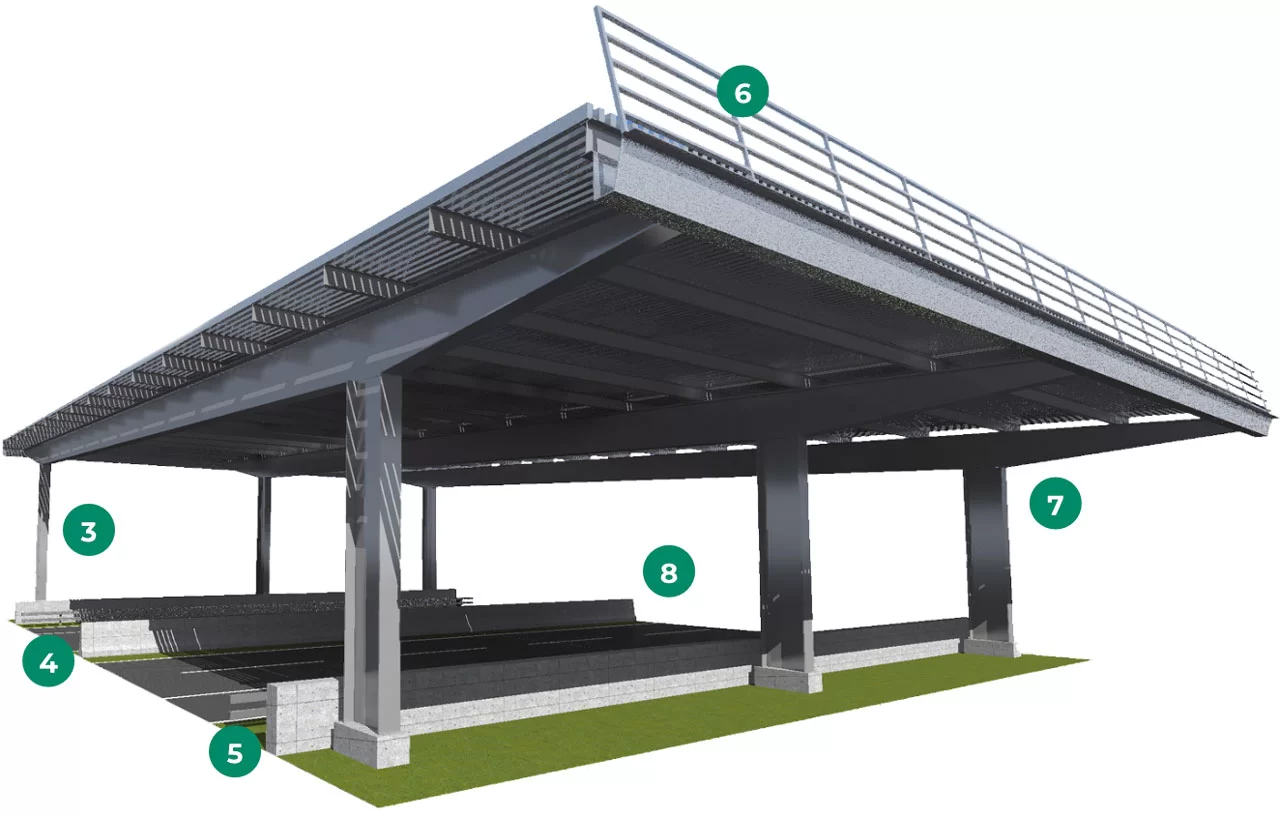

In addition to its function as a high-yielding electrical power plant, EnergyPier’s structure provides additional advantages to both motorway operators and users:

  • The structure, particularly its security barrier and canopy, acts as a sound insulator and ensures important noise reduction
  • The overhead canopy structure protects the road surface from snowfall, thus eliminating or greatly reducing the need for winter maintenance such as salting and snow ploughing
  • The canopy also protects from excessive heat and UV rays, thus considerably extending the service life of the road surface
  • The slanted overhead surface allows for rainwater collection
  • The supporting structure can be adapted to house cables and other conduits
  • The structure can accommodate emergency e-mobility powercharging points

In sum, the system as a whole creates a sustainable motorway environment, improving user experience whilst decreasing disturbance for local communities, and supplying e-mobility electricity.

energypier

EnergyPier an innovative project

Innovation #1

R&D and technical research: achieve a high level of innovation while applying only well-proven technologies to assure both the security and longevity of the structure and to avoid costly and time-consuming teething problems.

energypier structure

Innovation #2

Constructing over motorways without interrupting the flow of traffic by adapting existing proven construction techniques.

image/svg+xml Energypier assembly procedure transversal ripping chariot assembling workshop tower tower tower bridge

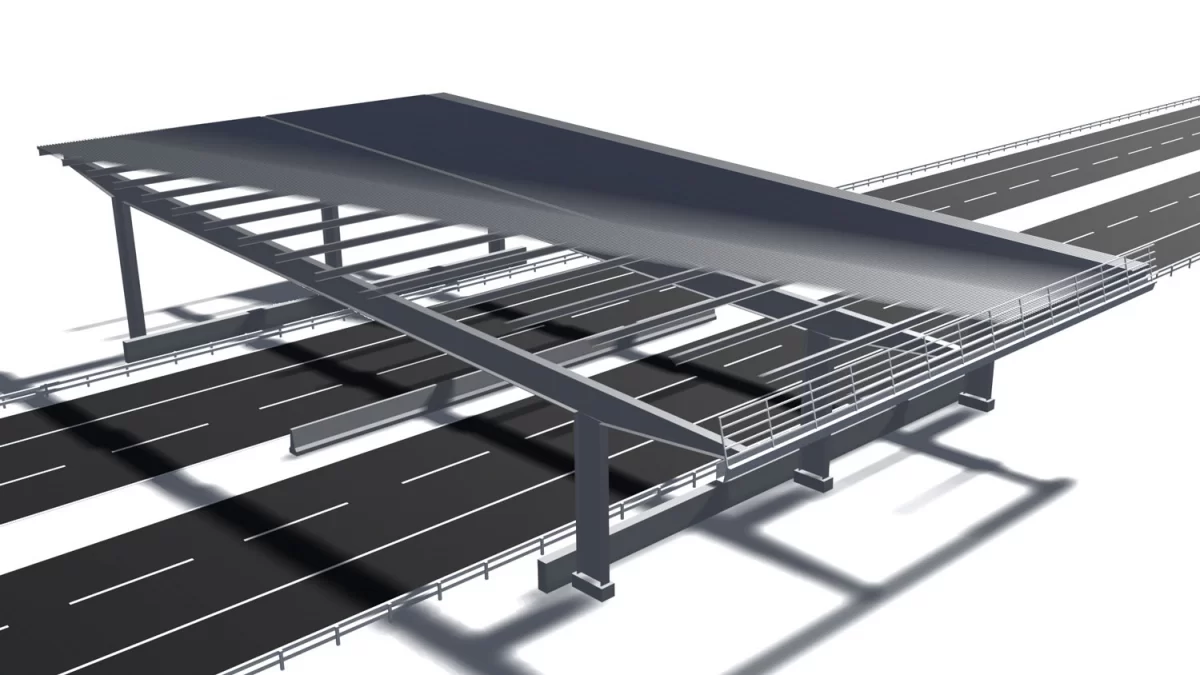

view energypier

Innovation #3

Blending the infrastructure into the landscape: upgrade the motorway’s basic mobility function into a multifunctional tool, thus creating additional benefits without creating additional negative impacts.

Innovation #4

A combined power plant, achieving the optimal cost/performance balance: it is the combination of high performance solar cells with the EnergyPier AnemoGenTM air turbines that will result in an optimal cost per KWh.

image/svg+xml Helical Rotor

An EnergyPier AnemoGenTM unit

Example of a draft illustration of the EnergyPier solution

As the main technical elements of the EnergyPier solution are protected by intellectual property rights, this diagram is presented solely for illustration purpose

energypier

The environmental balance sheet of the EnergyPier combined electric power plant

The purpose of the environmental balance sheet is to base the most important justification of the EnergyPier combined electric power plants project on firm ground: To contribute to prosperous and sustainable economic growth for all.

There are a number of tools to validate the sustainability of such a project, such as a LCA (Life-Cycle analysis), the environmental impact study, the carbon footprint balance sheet etc... These analysis are outside the scope of this website. Nevertheless, it is possible to anchor a solid evaluation by equating energy invested over a ratio of energy produced/gray energy, gray energy savings as well as by defining the project’s ancillary environmental effects with the evaluation of externalities it generates.

The ratios Invested Energy (produced energy/gray energy) and Saved Gray Energy are largely positive, whether the installation is located in a continental climate country or in a warm climate country.

image/svg+xml ImplementationMaintenanceProductionExtractionConversionTransportationManufacturingRecycling

Positive externalities allow to evaluate the adjunct effects of the project on the environment:

  • Non-existent chemical emissions
  • Noise emissions reduced by 5 to 8 db
  • Visual exposure integrating the structure into the landscape
  • Grid network management: facilitating the integration of sustainable energy into the grid
  • Impact on wildlife: tending to null
  • Other emissions (construction, decommissioning, recycling): very light

Returns on invested energy

Moderatly favorable geographic zone (e.g., Europe)

Ratio
Produced energy

Gray energy
PV production only > 13
PV production + Anemosystem™ > 19
PV production + Anemosystem™ + SAVED gray energy > 20

Favorable geographic zone (e.g., Middle East)

Ratio
Produced energy

Gray energy
PV production only > 20
PV production + Anemosystem™ > 30
PV production + Anemosystem™ + SAVED gray energy > 35

Comparison with alternative sustainable energy production methods

Traditional rooftop solar installation Energypier
Ratio of energy produced to gray energy Equivalent
Necessary number of power plants for industrial scale production Higher
Additional benefits (reduction of environnemental impact) Higher
Quantity of electrical power per installation Higher
Industrial windmill installation Energypier
Ratio of energy produced to gray energy incl saved grey energy Equivalent
Wind turbulence Higher
Noise and visual environmental impact Lower
Impact on avian fauna Lower

Sustainable energies are not mutually exclusive but are complementary.

energypier

A pilot project

2 demonstration plants in Switzerland

The first two EnergyPier plants are to be built as demonstration projects within the Confederation’s institutional and regulatory framework (FEDRO and SFOE).

The selected locations are in Cantons of Valais (Commune de Fully) and of Zurich (Knonauer Amt district).

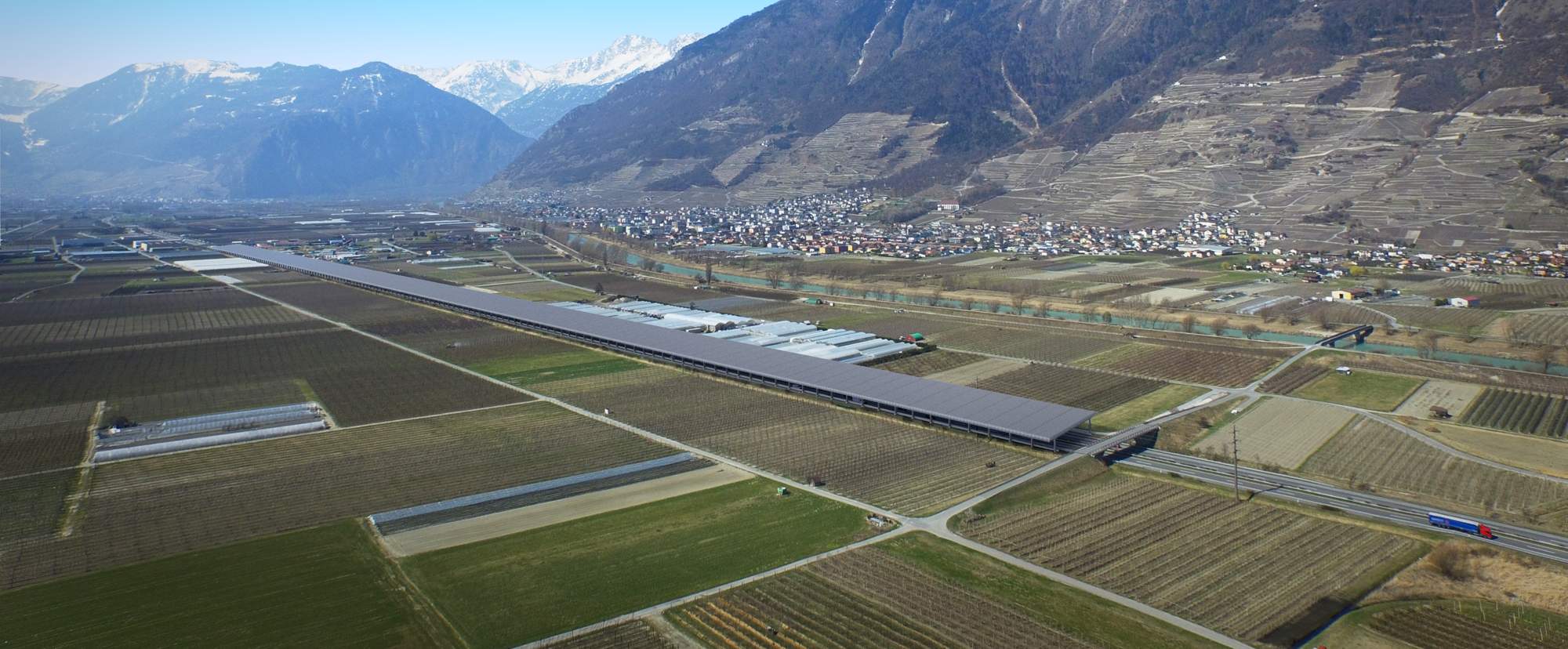

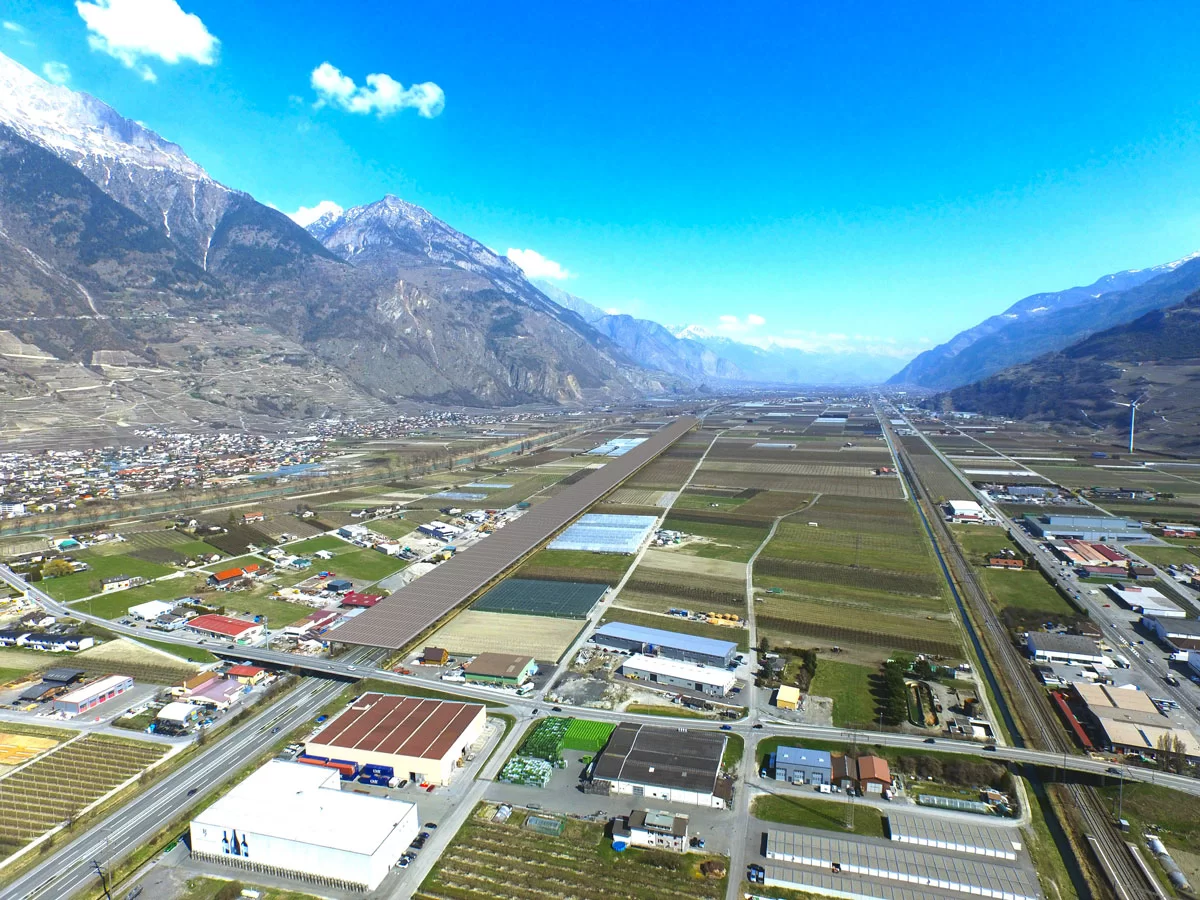

EnergyPier combined power plant in Fully (VS), autoroute A9

  • 1,609 m
  • Annual production: ~50 GWh/year (consommation of 12,500 households per year)
  • Structure’s minimal service life: 150 years

EnergyPier combined power plant in A4-KW of the Knonauer Amt (ZH-ZG)

  • 2,500 m
  • Annual production: ~78 GWh/year (consommation of 20,000 households per year)
  • Structure’s minimal service life: 150 years
Map pilot projects
energypier

The development of the Swiss market

2020-2035

Among the main considerations of energy transition in Switzerland is the compensation of the deficit created by the reduction of current production which due to the impending decommissioning of the country’s nuclear and thermal fleet and the fulfilment of the new needs for electrical energy resulting from the decarbonation of vehicle and commercial fleets, of heating as well as the increase of telecommuting.

In 2019, renewable sources of production, excluding hydroelectricity, amounted to 3 TWh / year. Despite their rapid ramp-up, the threshold of 25-35 TWh / year will only be reached with the addition of significant additional sources of production.

EnergyPier plants are therefore an important complementary solution. Assuming an average plant size corresponding to the A4- KW plant at the Knonauer Amt described above, around 250 EnergyPier plants will have to be constructed, spread out over the entire Swiss motorway network.

To respond to this diversity of possible scenarios, EnergyPier acts within a flexible structure which adapts to the needs and choices of its customers and partners in the designing and implementation of projects.

At the heart of the start-up that saw the birth and growth of the EnergyPier project, the EnergyPier Team is already active in advising on the initiatives the various players will take during the process leading to energy transition in Switzerland. It is ready to study all forms of collaboration on offer with a view to rapidly respond to the issues created by the energy transition.

energypier

Infinite global perspectives

In addition to its total commitment to building the power plants that Switzerland will need, the Swiss EnergyPier Team is also planning to deploy internationally.

Initially, the Team plans to consider certain European countries neighboring Switzerland, where the solution will be attractive as they struggle to divest from nuclear and high-impact CO2 fossil fuels.

Following this, the Team will investigate further afield, setting up local collaborations to identify, contribute knowledge and adapt it to countries with more essential needs in more favorable climatic conditions.

It follows that the opportunities will then be innumerable.

As was the case with hydropower plants, successive EnergyPier projects will result in the development of a bona fide Swiss combined power plant industry.

An industry with a global reach that will tackle the energy transition concerns that are felt throughout the world.
